TONI KÜPFER SA
Combination unitAssainiconcept

Barakuda 7.0 T

Heavy-duty 7T sewer cleaner with all the qualities of light sewer cleaners

Barakuda 7.0 T

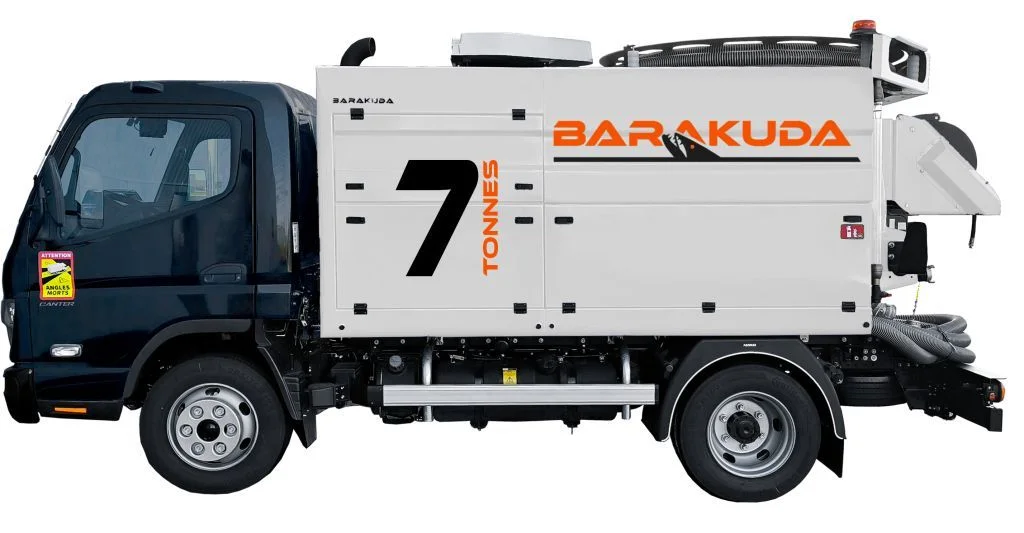

The Barakuda 7.0 T sewer cleaner from Assainiconcept combines the power of a heavy-duty vehicle with the maneuverability of a light vehicle. Mounted on a Fuso chassis, this compact vehicle (2.53m height, 2.17m width, 5.60m length) offers exceptional storage capacity thanks to its three compartments totaling 700 liters.

Its suction reel can hold up to 85 meters of 80mm diameter hose, ensuring powerful suction over long distances. The large tank capacity allows multiple interventions before emptying, and the low height facilitates access to parking garages.

The tippable tank facilitates mud drainage and simplifies the cleaning process. The lobe pump without oil discharge ensures clean and environmentally friendly operation, eliminating contamination risks.

Highlights

  • Tippable tank
  • 700 liters storage
  • Suction 85m DN80

Technical specifications

Tank

Material
Aluminium
Drainage
Tipping tank

High pressure pump

1/3Pratissoli KT 26 - 43L/320bar
Brand
Pratissoli
Model
KT 26
Drive
Belt drive
Technique
Ceramic triplex piston
Max flow
43L/min
Max pressure
320bar
Power
26kW

Vacuum pump

Drive
Hydraulic
Technique
Lobe

Suction hose reel

System
Hose reel
Drive
Hydraulic
Diameter
80mm
Length
85m

Control

Remote control
Yes

Installation information

Height
2 530mm
Length
5 600mm
Width
2 170mm
Availability
6months

Chassis

Brand
Fuso
Model
Canter
Authorized load
7t

Interested in the Barakuda 7.0 T?

Contact us for a personalized quote.
